组装式储罐内浮顶又称内浮盘，是漂浮在油罐液面上随油品上下升降的浮动顶盖，可减少介质的挥发损耗，而且由于内浮盘把介质即罐内储料和空气有效隔绝，从一定程度上也降低了发生火灾爆炸的危险等级，储油罐外部的拱顶又可以防止雨水、积雪及灰尘等进入罐内，保证罐内介质清洁
The internal floating roof of assembled storage tank,also known as inner floating plate,is a floating top cover floating on the oil tank surface and rising and falling with the oil products,which can reduce the volatilization loss of medium.Moreover,the internal floating plate can effectively isolate the medium,i.e.the storage material in the tank and the air,so as to reduce the risk level of fire and explosion to a certain extent.The dome outside the storage tank can prevent rainwater,snow and dust from entering In the tank,ensure that the medium in the tank is clean
组装式储罐内浮顶分类：
Classification of internal floating roof of assembled storage tank:
按照材质的不同，组装式储罐内浮顶可分为铝制内浮顶及钢制内浮顶。铝制内浮顶采用仿生蛛网型结构，主要用于储存轻质油，例如汽油、航空煤油等；钢制内浮顶材质选用304或316L不锈钢，用于腐蚀性强的液体化学品的储罐，多采用井字形结构，使用寿命比铝制内浮顶更长，结构强度更大。
According to the different materials,the internal floating roof of assembled storage tank can be divided into aluminum inner floating roof and steel inner floating roof.The aluminum inner floating roof adopts bionic cobweb structure,which is mainly used to store light oil,such as gasoline,aviation kerosene,etc.;the steel inner floating roof is made of 304 or 316L stainless steel,which is used for the storage tank of corrosive liquid chemicals.The service life of aluminum inner floating roof is longer than that of aluminum inner floating roof and the structural strength is greater.

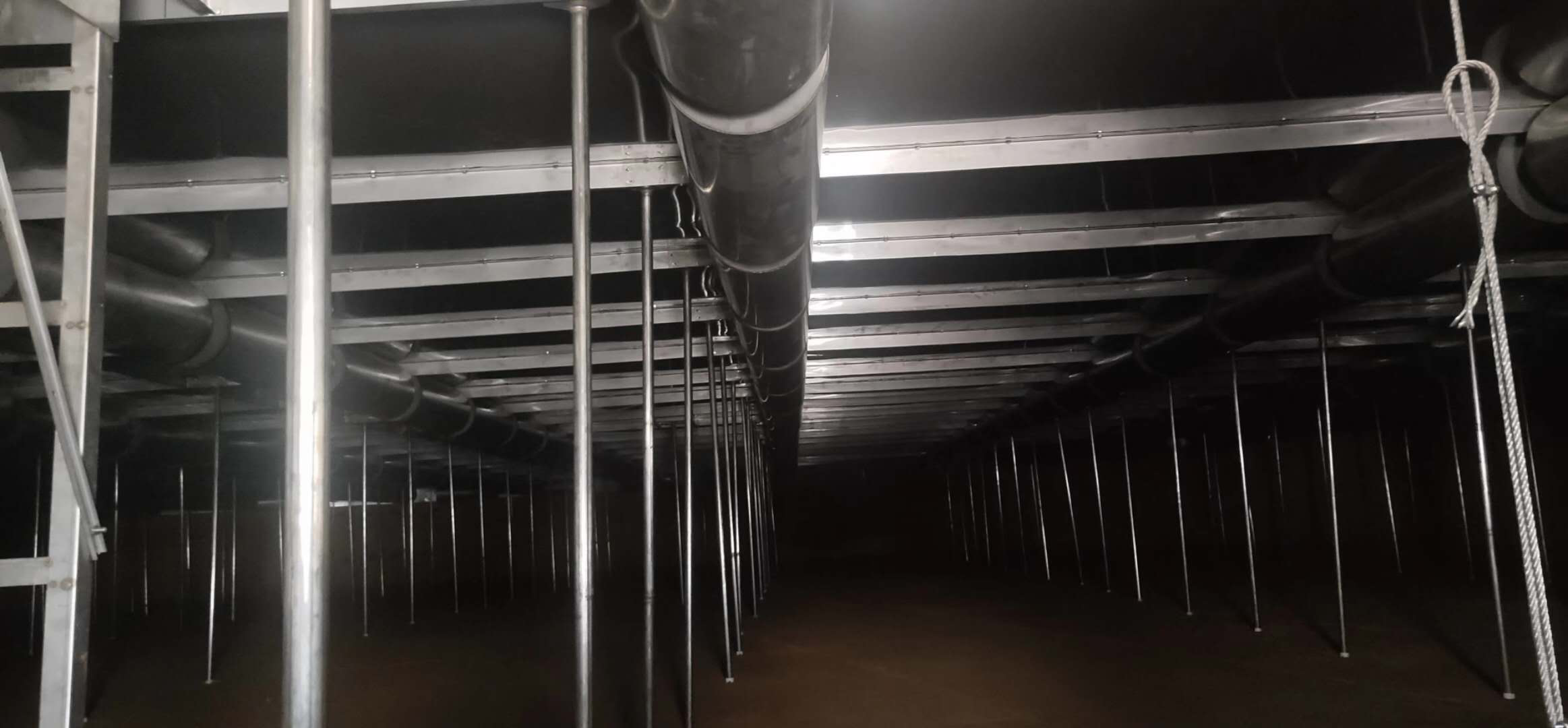

储罐内浮顶结构主要包括：
The floating roof structure in the tank mainly includes:
浮子、盖板、密封胶带、主梁、副梁、外圈梁、支腿、防转装置、人孔、量油、导静电带、连接螺栓等。
Float,cover plate,sealing tape,main beam,auxiliary beam,outer ring beam,outrigger,anti rotation device,manhole,oil measuring,static conducting belt,connecting bolt,etc.
内浮顶安装现场条件要求：
Requirements for installation site conditions of internal floating roof:
1、确保储罐所有开孔全部完毕且应装附件全部已焊接，浮盘组装开始后不得再动火；
1.Ensure that all openings of the storage tank are completed and all accessories are welded.No hot work is allowed after the floating plate assembly;
2、储罐需做除锈处理的，必须在内浮盘进罐前做完并验收合格；
2.If the tank needs to be derusted,it must be finished and accepted before the inner floating pan enters the tank;
3、储罐已做完试水试验且验收合格；
3.The storage tank has completed the water test and passed the acceptance test;
4、到场部件及材料在现场堆放前，储罐内必须清理干净，不得有油污和污水，用架空方法和胶布与地面隔绝；
4.Before stacking the components and materials on site,the storage tank must be cleaned and free of oil and sewage.It is better to isolate the tank from the ground by overhead method and adhesive tape;
5、储罐内表面凡是可能损伤密封装置的焊疤、毛刺等障碍应清除干净并将表面打磨圆滑；
5.Any welding scar,burr and other obstacles on the inner surface of the storage tank that may damage the sealing device shall be removed and the surface shall be polished smoothly;
6、内浮盘组装所需的电源电线已接至罐口并准备好焊机等需要的条件，组装过程中需使用手电钻、电动扳手等工具，业主方需按相关章程办理动火证；
6.The power wires required for the assembly of the inner floating plate have been connected to the tank mouth and the necessary conditions such as welding machine are prepared.Tools such as electric hand drill and electric wrench shall be used in the assembly process.The owner shall apply for the fire permit according to the relevant regulations;
7、非新罐区储罐罐内须清洗干净并通风处理，保证空气质量达标后方可组装。
7.The tank in the non new tank farm must be cleaned and ventilated to ensure that the air quality reaches the standard before assembly.
